Cheat-Sheets

Kubernetes cheat sheet

Kubectl
helm
- List all deployments
- Dry run (simulate installation process) with detailed debug output
Relationship: Container (Docker) - Orchestrator (K8s) - Package manager (helm)
Value injection from a CI/CD pipeline to the application
More on how Kubernetes works

Kubectl

Context

📝 context = group of access parameters (cluster, user, namespace…)

List all contexts

kubectl config get-contexts

Show the current context

kubectl config current-context

Set the current context to my-cluster-name

kubectl config use-context my-cluster-name

Rename a context

kubectl config rename-context old-name new-name

Namespace

List all namespaces in cluster

kubectl get ns

Create a namespace in current context

kubectl create namespace my_namespace

Change namespace

kubectl config set-context --current --namespace my-namespace

List events in a namespace

kubectl get event –namespace my-namespace

List all services in the namespace

kubectl get services

List all pods in all namespaces

kubectl get pods --all-namespaces

List all pods in the current namespace, with more details

kubectl get pods -o wide

Deployment

Describe a deployment (name, namespace, labels, annotations, selector, replicas, strategy, pod template, events)

kubectl describe deployment

Show information about a deployment (name, ready state, up-to-date state, available state, age)

kubectl get deployment my-deployment

Pod and node

List all pods in the current namespace

kubectl get pods

Get a pod’s YAML definition

kubectl get pod my-pod -o yaml

Describe commands with verbose output

kubectl describe nodes my-node

kubectl describe pods my-pod

Connect to the terminal of a running pod

kubectl exec --stdin --tty pod_name -- /bin/bash

See pod logs

kubectl logs pod_name

Save pods logs to a file

kubectl logs pod_name > app.log

📝 Open output logs and don’t show lines with “abc” `grep -v "abc" app.log`
📝 Open output logs and only show lines with “abc” `grep "abc" app.log`
📝 Make it case insensitive with the parameter `-i`

helm

List all deployments

helm list

Dry run (simulate installation process) with detailed debug output

helm install release_name ./chart_path --dry-run --debug

Relationship: Container (Docker) - Orchestrator (K8s) - Package manager (helm)

K8s Cluster (= Kubernetes environment)

—K8s namespace (= logical container for resources)

——-helm release (= instance of a helm chart running in a K8s namespace)

———–K8s deployment (= set of identical pods)

—————-k8s pod (= smallest deployable unit in Kubernetes)

——————-Docker container

K8s node (= server that runs the Kubernetes runtime and hosts the pods)

Value injection from a CI/CD pipeline to the application

CI/CD pipeline	helm	Kubernetes	Container (Linux env)	Application (source code)
variable	values.yml *	configmap/secrets/config file (reference configurations and provide them to the container)	Environment variable (or volume for files)	app properties
FOO_BAR = 1	foo: bar: $FOO_BAR	data: FOO_BAR = (name used in the values.yaml file to do the mapping, could be whatever name)	FOO_BAR = (value received from Kubernetes)	foo.bar = $ (syntax depends on project language)

(*) Don’t use dash - in values.yaml keys!

More on how Kubernetes works

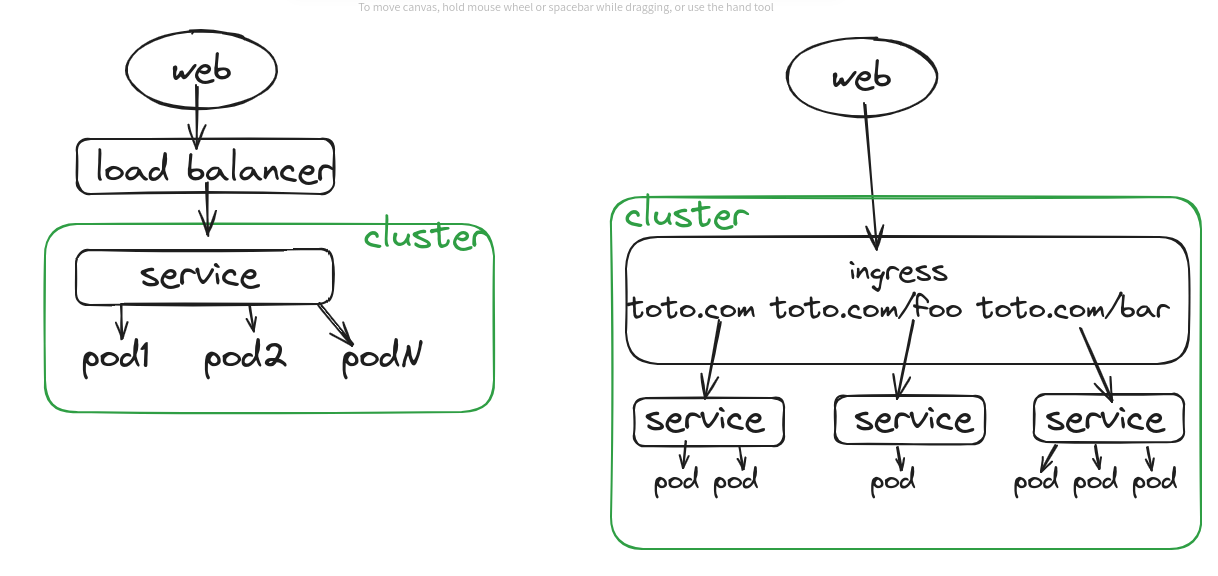

Entry points

Service: Provides a single IP for the cluster. The cluster IP is only visible inside the cluster.
Load balancer: Exposes an external IP to outside the cluster and routes the traffic to the service. Lives outside the cluster (usually provided by a Cloud provider).
Ingress controller (service mesh): Load balancer that can handle several services (=> several IP addresses available for the cluster.). Lives inside the cluster.

Replicaset vs Daemonset

Replicaset: 2 => 2 pods, distribution is not transparent Daemonset: 2 => 2 pods, but each pod is distributed on a different node (1 pod per node)

Service

Abstraction to group pods under a common access policy. They have a virtual IP which clients within the cluster can access and proxied to the pods in the service.

Pod

Collection of containers that share the same resources.

All containers in a pod have the same host.

Inside the pod, each container has a localhost address (127.0.0.1) and a static port (user defined in the pod definition) => easy to move from a local/uncontainerized environment to a containerized environment. These ports are not visible outside the pod.

The pod has an IP address, fix and unique in the cluster.

A pod is created with the resource type (kind) “deployment”. The kind “pod” is hardly ever used, it creates a standalone pod that is not managed by the controller.

State

Kubernetes components are stateless. They read and update their state in a database provided by the Kubernetes API. That database is a key-value store named “etcd”. When a component restarts, it retrieves its state from etcd.

Loose coupling

kind: Service                       kind: Deployment
   spec:                                 metadata:
        selector:                            labels:
            app: APPNAME                        app: APPNAME
            component:

Any pod with label app: APPNAME will be targeted by the service with that selector

Reference to configMap values in manifests

Create a container with an environment variable with a specific key of a configMap

spec:
   containers:
       - name: <name>
            valueFrom:
               configMapKeyRef:
                  name: <configmap_name>
                  key: <key>

Create a container with environment variables with all keys of a configMap

spec:
   containers:
       - name: <name>
            envFrom:
               configMapRef:
                  name: <configmap_name>
